Developing an application for Mac OS, sooner or later you’ll want to add an icon to it. And Mac OS uses Apple’s own format for application icons - Apple Icon Image format - files with .icns extension. But how does one create such a file?

Application icon inside the app bundle on Mac OS

It is actually not so hard, but there are some tricky moments. I’ll cover those and as a bonus I’ll show you how to use .icns icon in Qt-based application (deadly simple).

How to convert PNG to ICNS

There is an out-of-the-box Mac OS tool for such conversion - iconutil (documentation for which is nowhere to find at Apple’s website, so this brief man page is all we have).

However, you cannot just take a random PNG and feed it to iconutil. I mean, you can, but it will give you the following error:

$ iconutil -c icns some.png
some.png:Iconset not found.

Because iconutil takes only specially named folders. Just how am I supposed to know about that? And it shows similar short and useless error messages for other things it doesn’t like. For example, here’s an output for the situation when files inside iconset folder are not named “properly” or have “wrong” dimensions:

$ iconutil -c icns some.iconset
some.iconset:Failed to generate ICNS.

Go figure.

After a set of trials and browsing the internet I found out (hopefully) all the requirements:

  1. First you need to prepare a set of icon pictures and put those into a folder with .iconset “extension”, for example some.iconset;
  2. Pictures from this set should be named in a certain way and have specific dimensions.

Correct dimensions can be found in Apple Guidelines. So it’s 5 different dimensions, but actually 10 “physical” files as each dimension is represented twice (you’ll see why). And these files have to be named according to the following format:


So here’s the full list of proper filenames:

$ tree some.iconset/
some.iconset/
├── icon_128x128.png
├── icon_128x128@2x.png
├── icon_16x16.png
├── icon_16x16@2x.png
├── icon_256x256.png
├── icon_256x256@2x.png
├── icon_32x32.png
├── icon_32x32@2x.png
├── icon_512x512.png
└── icon_512x512@2x.png

0 directories, 10 files

Script to automate the process

But that’s rather boring to create all those files manually in some graphics editor, right? So let’s use sips utility (although, I recommend using ImageMagick, as it gives better quality results):

sips -z 16 16 some.png --out icon_16x16.png

Better, but still - we have to run it 10 times. So let’s write a Python script for that:

# a class to store icon parameters: its size and scale factor
class IconParameters():
    width = 0
    scale = 1

    def __init__(self, width, scale):
        self.width = width
        self.scale = scale

    def getIconName(self):
        scaleString = "" if self.scale == 1 else f"@{self.scale}x"
        return f"icon_{self.width}x{self.width}{scaleString}.png"


# create a list of all the sizes (5 actual sizes, but 10 files)
ListOfIconParameters = [
    IconParameters(16, 1),
    IconParameters(16, 2),
    IconParameters(32, 1),
    IconParameters(32, 2),
    IconParameters(128, 1),
    IconParameters(128, 2),
    IconParameters(256, 1),
    IconParameters(256, 2),
    IconParameters(512, 1),
    IconParameters(512, 2)
]

# generate iconset folder by calling sips utility for each item in the list (so it's 10 times)
for ip in ListOfIconParameters:
    subprocess.run(
        [
            "sips",
            "-z",
            str(ip.width * ip.scale),
            str(ip.width * ip.scale),
            originalPicture,
            "--out",
            iconsetDir / ip.getIconName()
        ],
        capture_output=True,
        text=True
    )

The full script is published here. There is also a PyPI package.

As an example, I prepared a square picture with a resolution of 2048x2048 and 150 pixel per inch, so there is plenty room to prevent upscaling:

Apple logo

Pass picture path to the script like that:

python generate-iconset.py ~/Desktop/apple.png

The script will:

  1. Create a folder ~/Desktop/apple.iconset;
  2. Generate 10 files with different dimensions and save those into that folder;
  3. Call iconutil on this folder and put resulting apple.icns to ~/Desktop/.

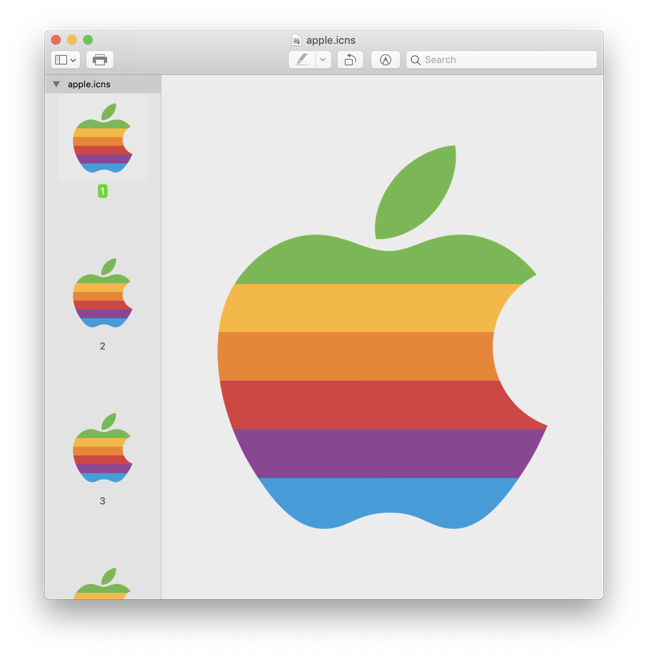

Here’s how the final apple.icns looks like in Preview:

ICNS file in Preview

So everything from that folder is bundled into one file.

Setting icon for a Qt-based application on Mac OS

And now the bonus part - how to use .icns as an icon for a Qt-based application.

As I said, it’s deadly simple: put apple.icns into your Qt project folder and add the following line into your-project.pro:

ICON = apple.icns

And that’s it:

Application icon at the Mac OS dock
