Since we added a Grafana instance to our infrastructure, we started visualizing absolutely every single thing with it. So no wonder that eventually we turned our eyes to TeamCity.

TeamCity metrics in Grafana

In 2019.2 release TeamCity started exposing its metrics in Prometheus format, and that’s how Grafana can get those, as Prometheus is one of its supported data sources.

My environment:

# lsb_release -a
Description:    Ubuntu 18.04.4 LTS

# grafana-cli --version
Grafana CLI version 7.0.5

TeamCity user with access to metrics

First you need to add a TeamCity user with access to View usage statistics. For that you need to be logged-in to TeamCity as administrator.

Create a new role, call it Monitoring or something. Add the View usage statistics permission to it:

TeamCity role permission

Now create a new user, call it grafana and assign this new role to it:

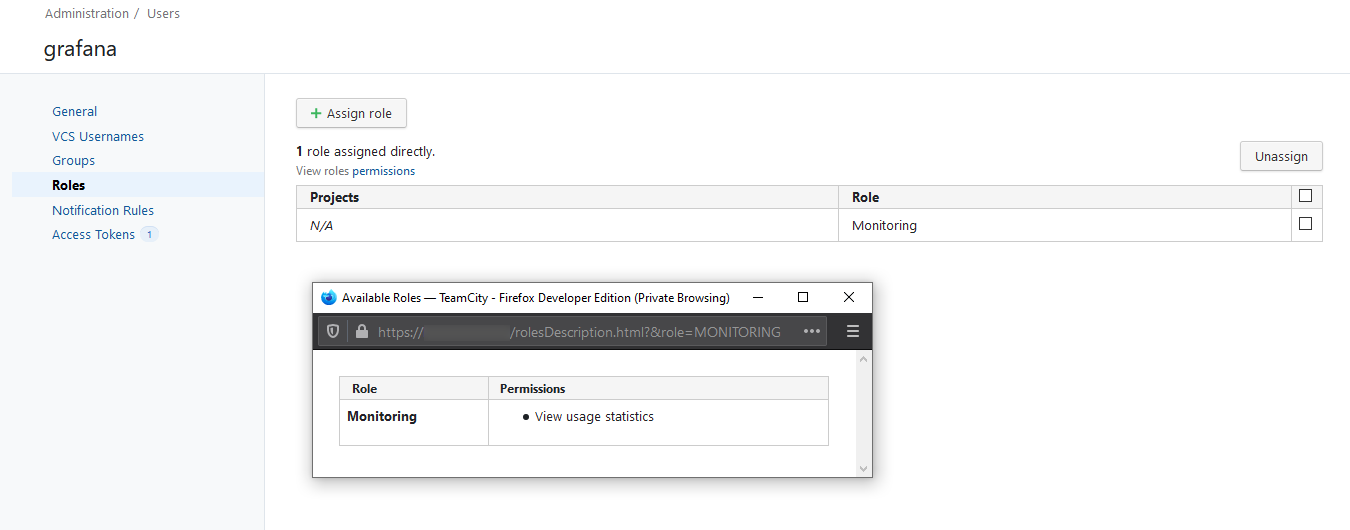

TeamCity user role

Also add an access token to this user.

Arranging a threesome

How to make everyone friends: Grafana, TeamCity and spanish inquisition Prometheus.

Adding data source to Grafana, failed attempt

So, we have a user with required access, we have the metrics endpoint, so the next steps are easy to guess, aren’t they? Go to Grafana and add a Prometheus data source for TeamCity, right?

Let’s do it then. Set the metrics endpoint, fill user login and password (what then was that access token for?) and that should be it.

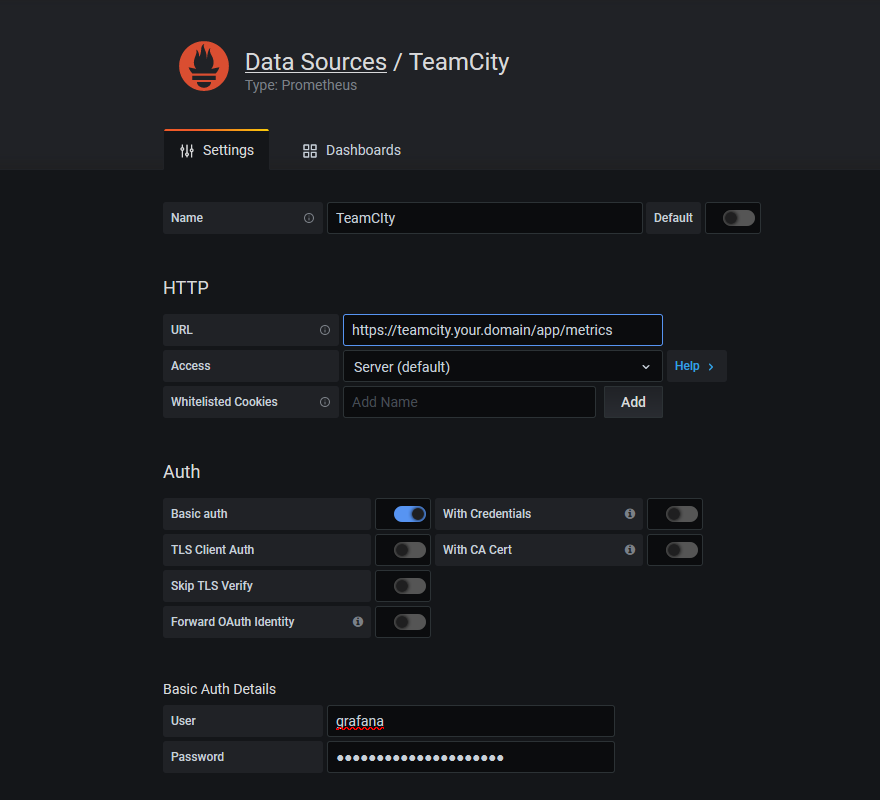

Grafana wrong Prometheus data source

Well, no, as you will get HTTP Error Not Found error:

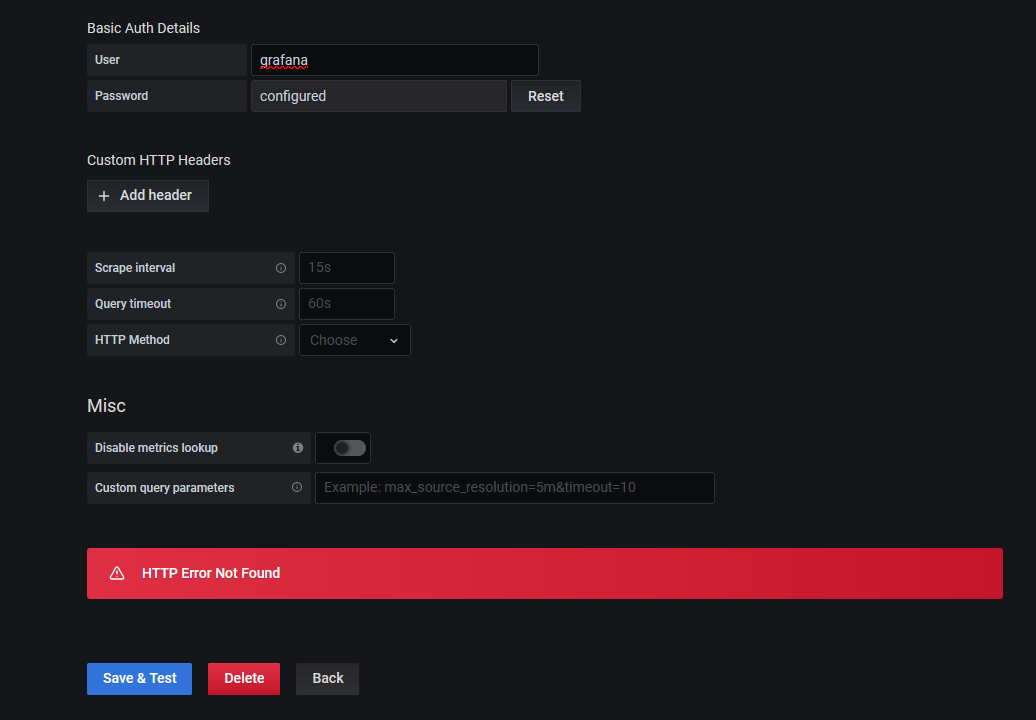

Grafana wrong Prometheus data source error

And you know why? Because it’s not the TeamCity endpoint what you need to add here!

Here’s how it actually should work:

  1. Prometheus is not just metrics format, it’s an actual software, so first you need to run a Prometheus instance somewhere
  2. Then you add your TeamCity metrics endpoint to that Prometheus instance for monitoring (scraping)
  3. And only then you add this Prometheus instance to Grafana as a data source

It’s almost hilarious, how at first I got carried away by the flow, as everything seemed to be so straightforward, so I missed the Prometheus part completely. In my defense I can say that I have never worked with Prometheus (or even knew about its existence, for that matter).

But okay, let’s do it properly.

Setting up Prometheus

The installation process is described in the documentation, but here’s my version anyway.

So, you download the latest release and unpack it to some folder where it will be working from. I chose /var/www/prometheus.

Edit the config file (prometheus.yml):

  scrape_interval:     15s
  evaluation_interval: 15s

  - job_name: 'TeamCity'

    # here goes the TeamCity endpoint
    metrics_path: /app/metrics

    # that's how you can set URL parameters (query string)
      experimental: ['true']

    scheme: https


    - targets: ['teamcity.your.domain']

Pay attention to the number of spaces in the beginning of the lines (nesting level), as this thing is quite sensitive to it.

By default TeamCity doesn’t expose all the metrics, as some of them are experimental. If you want to get all the metrics, you need to use the /app/metrics?experimental=true endpoint. And the way you specify that in Prometheus config is by setting the params value, like it is shown above, because it is a list. Quite obvious, innit.

This is it, Prometheus is ready to run. One would say, that was too easy. I, for one, was curious to know where the data will be stored, as there is nothing in this configuration pointing to any database. But apparently it is okay, so the configuration is really done.

But let’s also make a proper service for it. Create a new user for running Prometheus:

# adduser \
   --system \
   --group \
   --disabled-password \
   --home /home/prometheus \

Make it owner of the Prometheus files:

# sudo chown -R prometheus:prometheus /var/www/prometheus

And add a new systemd service (/etc/systemd/system/prometheus.service):


ExecStart=/var/www/prometheus/prometheus --config.file=prometheus.yml --web.listen-address="localhost:8002"


Note that I am binding it to localhost:8002. The plan is to run Prometheus on the same server as Grafana and hide both of them behind NGINX as a reverse proxy. That’s absolutely not necessary, it’s just my personal preference, so you can host it in any other way you want.

Why am I binding the port via command line arguments and not via config? Because, according to this, “configuration file is for options that can change dynamically. Changing the listen address is not possible on the fly”. What is the actual fuck.

Anyway, enable and start the service:

# systemctl enable prometheus.service
# sudo systemctl start prometheus.service

Since it’s binded to localhost, most likely you won’t be able to test it from your machine. But that doesn’t really matter now.

Adding the right data source to Grafana

So here’s how you add Prometheus as a data source:

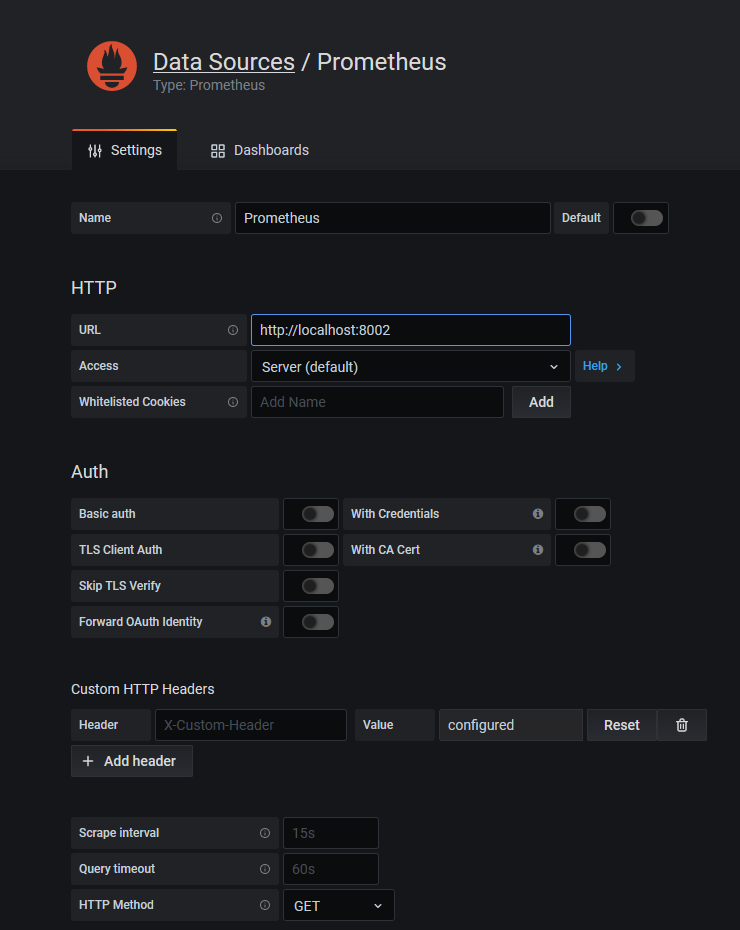

Grafana correct Prometheus data source

This is it. Now you can go and visualize TeamCity metrics in your Grafana dashboards:

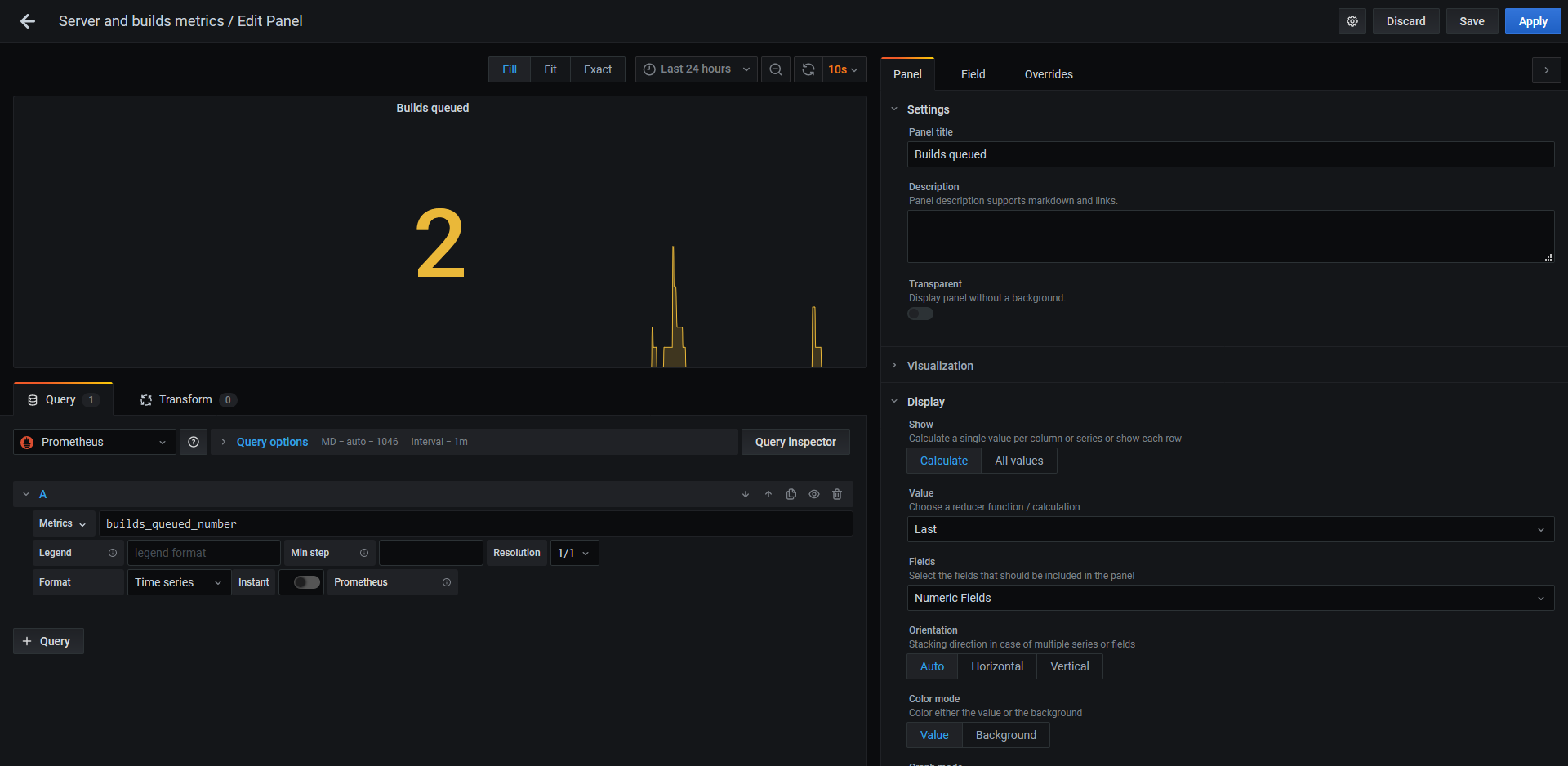

Grafana TeamCity metric

Conveniently enough, you can select metrics from the helper menu:

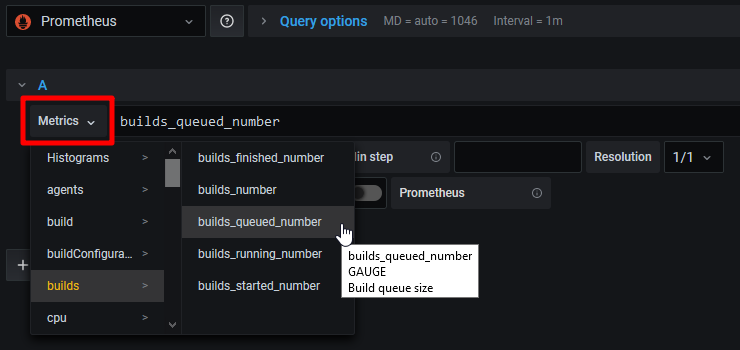

Grafana Prometheus metrics helper

Running everything behind NGINX

I am not sure if we will use Prometheus for anything else, but in case we will, I exposed it via NGINX. And since in my case both Grafana and Prometheus are running on the same server, I needed to create virtual hosts for them.

So first I registered DNS records for both:

  • grafana.your.domain
  • prometheus.your.domain

Hosting Grafana

Grafana config (/etc/grafana/grafana.ini):

;protocol = http
http_addr = localhost
http_port = 8001
domain = grafana.your.domain
;enforce_domain = false
;root_url = %(protocol)s://%(domain)s:%(http_port)s/
;serve_from_sub_path = false

NGINX config (/etc/nginx/sites-available/grafana):

server {
    listen 80;
    listen [::]:80;

    index index.html index.htm;

    server_name grafana.your.domain;

    location / {
        proxy_pass http://localhost:8001/;

Hosting Prometheus

Prometheus config you already saw, and here’s NGINX config (/etc/nginx/sites-available/prometheus):

server {
    listen 80;
    listen [::]:80;

    index index.html index.htm;

    server_name prometheus.your.domain;

    location / {
        auth_basic "Prometheus";
        auth_basic_user_file /etc/nginx/.htpasswd-prometheus;
        proxy_pass http://localhost:8002/;

Since Prometheus doesn’t have any authentication, I would recommend you to rely at least on Basic authentication from NGINX. Here’s how you can create a password mentioned in the config about:

# htpasswd -c /etc/nginx/.htpasswd-prometheus prometheus

Don’t forget to set these credentials in Grafana for the Prometheus data source. And while you are there, you might also want to change the URL from http://localhost:8002 to http://prometheus.your.domain.
